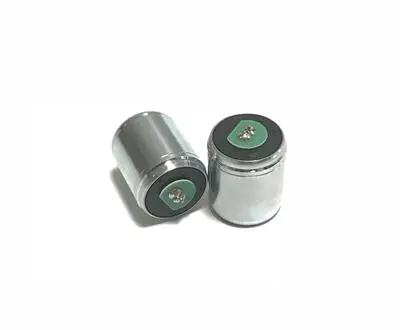

GS One Geophone Sensor (Equivalent)
GS One geophone sensor(P/N: ST-10PA) is a type of high precision and low distortion sensor, which is more and more applied in 2D&3D seismic survey and vibration monitoring with a single unit by replacing multi-geophone strings.
With the characteristic of high sensitivity, low distortion, light weight and easy deployment, the ST-10PA geophone sensor is becoming an improved choice compared with conventional 10hz geophones.
- GS One 10Hz equivalent and vertical direction.
- High Sensitivity of 85.80V/m/s.
- Low distortion less than 0.1%.
- Geophone sensor, land cased geophone or marsh cased geophone optional.
- Standard steel soil spike or snow flat plate base optional.
- 1-year limited warranty on basic elements exclusive of high voltage, lightening or physical abuse.
For any inquiries, please contact with our Marketing Team at sales@seis-tech.com or Supporting Team at info@seis-tech.com.
MAIN TECHNICAL PARAMETERSST-10PA GS One Geophone Sensor Parameters
| Type | ST-10PA (Equivalent to GS One Vertical Element） |
| Natural frequency ( Hz ) | 10±3.5% |
| Open circuit damping | 0.48 to 0.54 |
| Damping with 20KΩ shunt resistor | 0.7 |
| Sensitivity (V/m/s) | 85.8±3.5% |
| Coil Resistance (ohms) | 1800±5% |
| Harmonic Distortion ( % ) | ＜0.10 |
| Typical Spurious Frequency ( Hz ) | ＞240 |
| Moving Mass ( g ) | 14.0 |
| Max.coil excursion p-p (mm) | 2.54 |
| Max.tilt angle | 15º |
| Element Diameter (mm) | 27.0 |
| Element Height (mm) | 34.0 |
| Element Weight (g) | 104.0 |
| Operating Temperature(℃) | -40℃ to +100℃ |
| ● All parameters specified herein are rated at a temperature 20℃±2℃ ● 1-year limited warranty on basic elements exclusive of high voltage, lightening and physical abuse. ● Specifications are subject to change without prior notice. | |
* 1Hz geophone, 2Hz geophone, 2.5Hz geophone, 4.5Hz geophone, 8Hz geophone, 10Hz geophone, 14Hz geophone, 28Hz geophone, 40Hz geophone, 60Hz geophone and 100Hz geophone are also available.
* SM-4 structure geophone sensor, SM-6 structure geohpone sensor, SM-24 structure geophone sensor, GS-20DX structure geophone sensor, GS-32CT structure geophone sensor and GS-one structure geophone sensor are also available.
* High sensitivity geophone 1Hz, High sensitivity geophone 2Hz, High sensitivity geophone 4.5Hz and High sensitivity geophone 5Hz are also available.
